LED HIGHBAY-LEDHB5/AL SeriesClass: LIGHTING
7
General

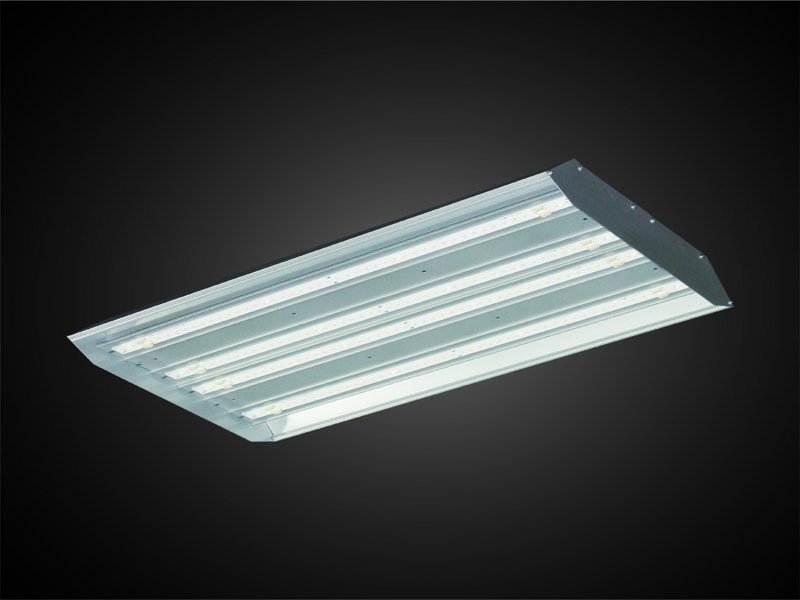

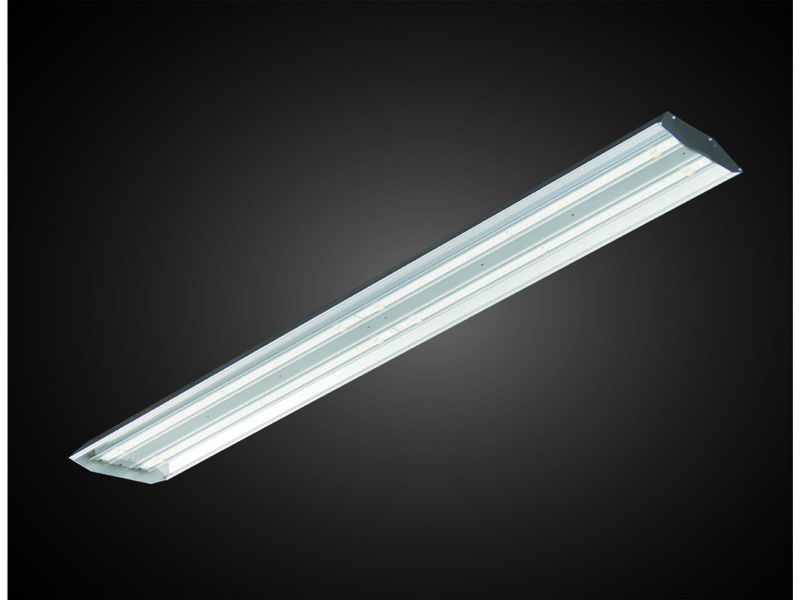

The HOSSONI LEDHB5/AL High Bay LED fixture is engineered for commercial and industrial environ-ments. The pure aluminum housing is ideal for heat radiation , outstanding for a wide variety of applications and mounting heights.
The HOSSONI LEDHB5/AL replaces a range of fixt-ures including Multi-Tube T5 fluorescents and 400W to 1000W Metal Halides and yields up to 75% energy savings on your power bill. The HOSSONI LEDHB5/AL fixture is a great fit for large square foot facilities such as Warehouses, Distri-bution Centers, Manufacturing Facilities and Cold Storage.In addition, this cost effective, high lumen output fixture also makes an ideal choice for many other environments such as Retail, Gym-nasiums, Health Clubs, Flight Hangers, Convention Centers and Sporting Venues.

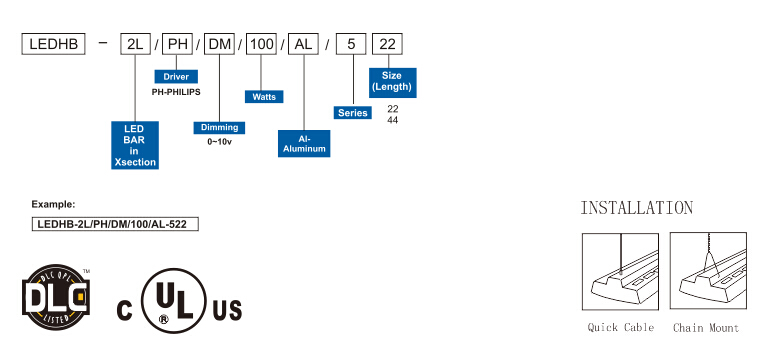

Model:LEDHB-2L/EP/DM/100/AL-722 LEDHB-3L/PH/DM/150/AL-722 LEDHB-4L/PH/DM/200/AL-722


Specifications
MODEL
LEDHB-2L/EP/DM/100/AL-722 LEDHB-3L/PH/DM/150/AL-722 LEDHB-4L/PH/DM/200/AL-722
WATTS
100W
150W
200W
NOMINAL LUMENS
10510
6371/6677
21000
EFFIENCY (LPW)
105.1
104.9
105
CCT
5000K
5000K
5000K
CRI
Ra > 80
Ra > 80
Ra > 80
POWER FACTOR
98
98
98
INPUT VOLTAGE
120-277V
120-277V
120-277V
COVER MATERIAL
Clear Polycarbonate
Clear Polycarbonate

Clear Polycarbonate

L80
>50,000
>50,000
>50,000


Model:LEDHB-2L/PH/DM/160/AL-544



Specifications
MODEL
LEDHB-2、3、4L/PH/DM/160、210、300/AL-544
WATTS
160W
210W
300W
NOMINAL LUMENS
18512
24256
34740
EFFIENCY (LPW)
115.7
113.8
115.8
CCT
5000K
5000K
5000K
CRI
Ra > 80
Ra > 80
Ra > 80
POWER FACTOR
98
98
98
INPUT VOLTAGE
120-277V
120-277V
120-277V
COVER MATERIAL
Clear Polycarbonate
Clear Polycarbonate

Clear Polycarbonate

L80
>50,000
>50,000
>50,000
